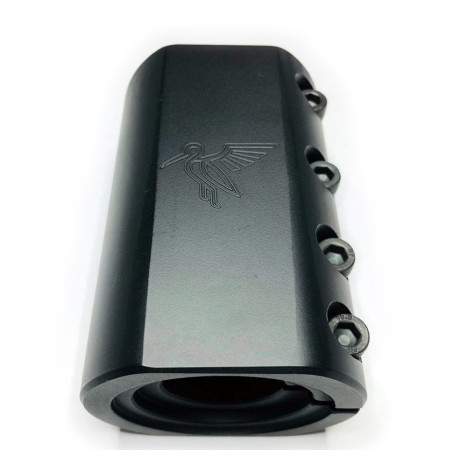

Steering pole clamp
Steering pole clamp for electric scooter Ninebot G30 Max
The Ninebot G30 Max clamp is a steering column clamp. This clamp serves as a replacement for the steering column assembly that has failed.
The production of this product is currently suspended until better times come.
Prolonged and rough use of this model of scooter leads to wear of the steering wheel assembly. This is especially true if the scooter is used for rental. To increase the customer's safety, we recommend replacing the folding unit with a fixed one.

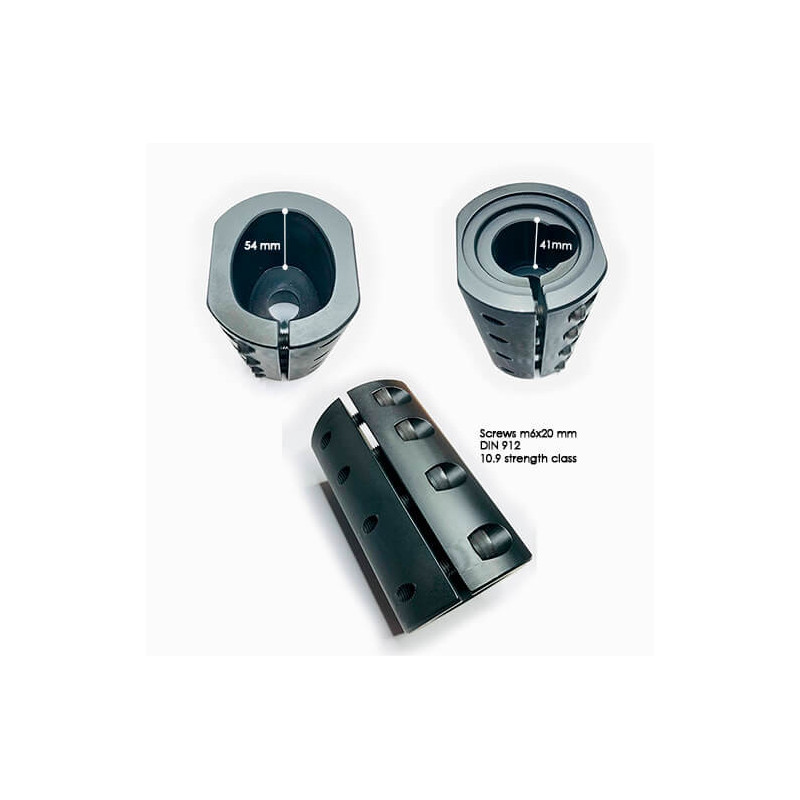

The clamp Ninebot Max G30 made of heat-treated and solid-milled 7075 aluminum material. This is not mass casting. Deep seat for steering pole is 54 mm in top part of the clamp and for steel tube is 41 mm in bottom part of the clamp. The weight of the clamp with screws is 535 grams.
Instaling
Installing the clamp is fairly easy. The lower designe of the сlamp is installed in the same way as the standard folding unit on the steering pole of this electric scooter, use existing long screw m6. Do not rush to tighten the side 4 screws that are included. Next simply insert the steering pole into the top of the clamp, after as removing the standard top part of the folding unit. Then align the steering pole of the scooter and tighten the four screws Scooter the clamp installation completed.
4444
