Konyk fork bracket

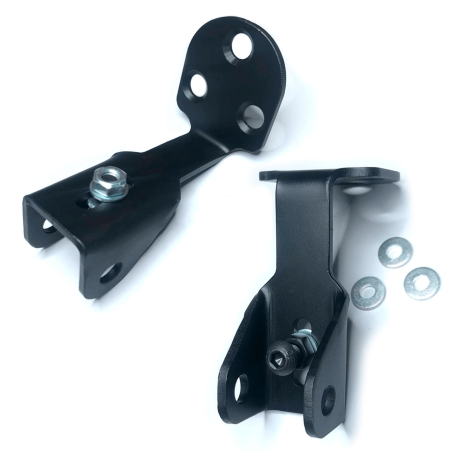

Steel, fully bent part in the form of a fork bracket for mounting the Konyk rear suspension shock absorber. It is installed on the frame for electric scooter models: Xiaomi Electric Scooter m365, 1S, Pro, Pro2.

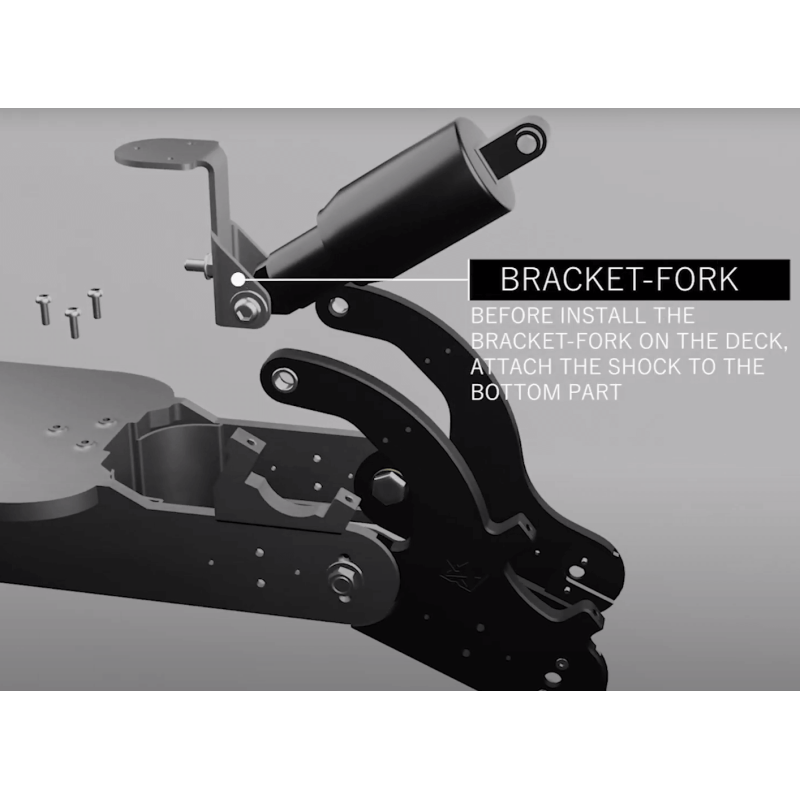

Please note that this part must be firmly fixed at the bottom with an m6 screw and a nut, the bracket must be “pulled” to the scooter frame so that the load is distributed along its lower body, and not pushed through the m6 screw and thin elements of the scooter frame, you must not give the bracket any chance of play.

Clarification regarding the Pro2 model.

There is a slight difference in the design, regarding the island for attaching the tail light wires, the island can be dismantled, or the bracket itself can be moved, thanks to the large holes on it. We recommend simply moving it closer to the wheel, but the lower part of the bracket should be “pulled” to the scooter frame by the entire body. That is, a slight deformation of the bracket is allowed.
